Marine Loading Arm - Lloyds Engineering Works Ltd

• Lloyds Engineering Works Ltd. commenced working collaboration with FMC SAS France from 1985. FMC scope was to do the design and engineering and supply the loading arm critical components like Swivel Joints, Seals, Coupler assy, Electrical components, Hydraulic valve assy etc PLC etc.
• Sole experienced manufacturer of Marine Loading arms in India. First company in India to enter in the field of fully powered hydraulically controlled MARINE LOADING ARMS.
• Leading manufacturers of Truck and Wagon Loading Arms for handling different products. Trained officials for After Sales & Service to take care of problems encountered with loading arms with short notice periods. Manufactured and commissioned more than 44 MLAs from our shop, Installed in all over India.
• Lloyds Engineering Works Ltd. in Technical collaboration with Technip FMC Loading Systems SAS France since 1985, supplies various Marine, Truck / Rail Loading arms for LPG, Petroleum / Chemical products & Sulphur loading arms, Piggable and Manifold systems. TechnipFMC provides design and drawings and backup guarantee whereas Fabrication, total system assembly, Hydro test and Yard testing, Erection & Commissioning by Lloyds Engineering Works Ltd
• Technip FMC – a multinational industrial conglomerate and world leaders in Loading Arms for more than 50 years.
• Lloyds Engineering Works has references of,

• Marine Loading Arms – 117 Nos
• Truck Loading Arms – 922 Nos
• Wagon Loading Arms – 1184 Nos

TECHNICAL DETAILS

• LLOYDS ENGINEERING WORKS LTD. is manufacturing loading arms as per

design of Technip FMC and after importing critical components from FMC and assembling the Loading Arms at their works and dispatching each loading arm in two sub-assemblies enabling faster installation at site.

• Provides platform with railings and ladders at trunnion swivel joint (style 50) and Apex Swivel Joint (style 40). Two maintenance personnel can work for replacing the packing IN SITU with minimum down time and without requirement of heavy cranes for dismantling.
• Fully complies with Oil Companies International Marine Forum (OCIMF) requirements to ensure more safety of the equipment, man power and improves the life of Loading Arms.
• Loading arms can be accommodated in minimum space and hence more space is available for maintenance & operational staff.
• Internals of style 80 swivel joints can be replaced in SITU condition without dismantling the loading arms. Hence no need of replacement of complete swivel joints.
• Swivel joints patented with replaceable snap in races.Hence grooves of swivel joints do not get damaged.
• Provides backup engineering, maintenance and supply of spare parts for next 25 years at economical cost.

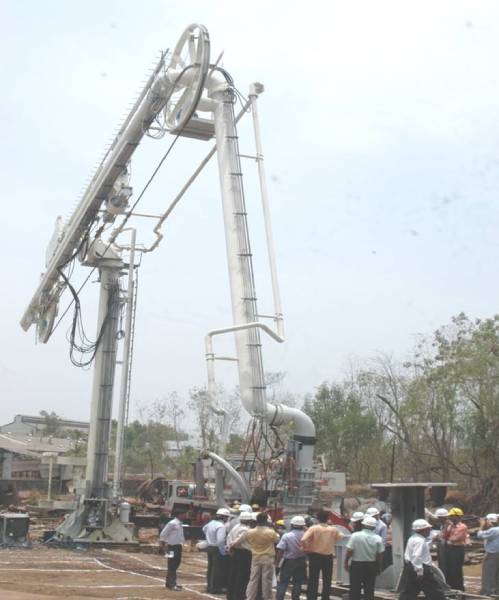

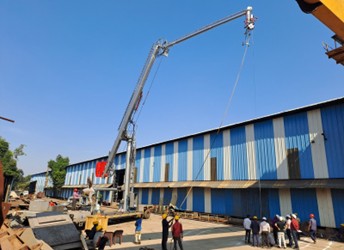

• Loading arms can be inspected at various stages of production including balancing test, hydraulic test and yard test.
• Supervision of Erection, installation and commissioning by expert engineers at competitive cost.
